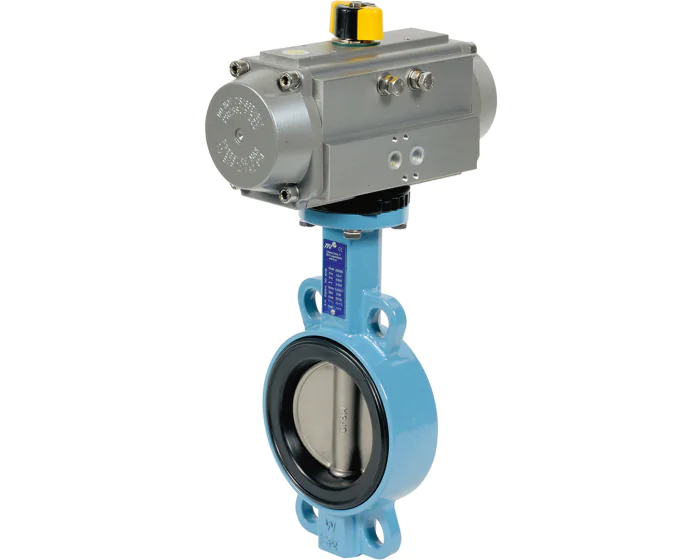

The 1151 butterfly valve has a ductile iron body, stainless steel disc and NBR seat. It is actuated with an ALPHAIR pneumatic actuator. PS: 16 bar (up to DN300), 10 bar above. Mounting between flanges PN10/16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN50 - 2'' |
| Seat | NBR |
| Body material | Ductile iron |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1.21.2.22 |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Double acting | 260441017006R | S1002305 |
€256.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Spring return | 260441017107R | S1002306 |
€292.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260442017007R | S1002307 |
€274.21
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Spring return | 260442017108R | S1002308 |
€352.90
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Double acting | 260443017007R | S1002309 |
€297.36
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Spring return | 260443017108R | S1002310 |
€376.19
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Double acting | 260444017008R | S1002311 |
€365.20
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Spring return | 260444017109R | S1002312 |
€452.99
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Double acting | 260445017008R | S1002313 |
€388.11
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Spring return | 260445017110R | S1002314 |
€548.11
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Double acting | 260446017009R | S1002315 |
€491.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Spring return | 260446017111R | S1002316 |
€743.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Double acting | 260447017010R | S1002317 |
€696.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Spring return | 260447017112R | S1002318 |
€938.79
(excl. btw)
|
add to cart |
